Temperature Sensors
Pulse Counters

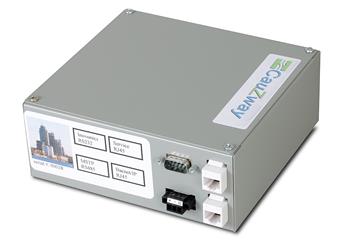

Cauzway Control Units
Cloud Connection
BACnet Connection
Using CauZway© tools, we have made it easy for the integrator to:

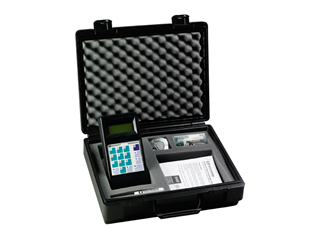

- Design and build the wireless network infrastructure. A portable survey kit designates repeater placement
- Enroll wireless devices to our gateway and to see device signal strength once installed at a job site
- See in 'real-time' each unique wireless input or output control device in a BACnet view
- Observe device status and receive alerts re: Supervision and Quality of Service* for each device
Choose your Cauzway Control
Cauzway Control
- CC100ib device limit - 250*
- CC200ib device limit - 1000**
- CC300i Data to Cloud, no BACnet
* Broadcast is typically used for 1-250 input points
** Directed Mesh is always used for 250-1,000 input points and for up to 200 two-way output control modules
Cauzway Wireless Interface
- CUBE8r - 8 relay outputs
- CUBE4r - 4 relay outputs
- CUBE2r - 2 relay outputs
CauZway© Web based tools and features:
- Automatic licensing and product code dispensing
- An automatic snap-shot of the entire job will aid in a successful commissioning. All Cauzway device information is then available in one central location on the Internet and any service is immediately captured for others to view.
- Automatic Software updates of gateways and field deployed wireless two-way serial output controls
- Sensor data collection for trending, analysis and sub-metered billing data
- Pulse count data is sent periodically using secure (FTPS) to CauZway's cloud based storage
- Secure data extractor is used for base-line energy data collection reports and utility sub-metering and billing services accessing our storage data.
